RadiCentre / RadiSwitch - EMC Test Systems

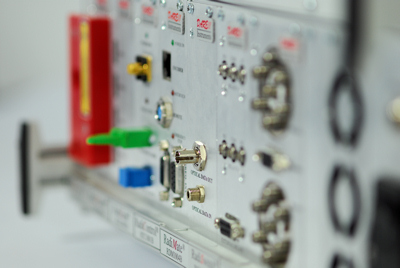

Example of a RadiCentre®-7.2 with Plug-in cards

The following plug-in cards are available for the RadiCentre® EMC Test Systems:
RadiSense®, RadiPower®, RadiGen®, RadiSwitch®, RadiMate®, RadiControl®, RadiPol® and  RadiLink®. All instruments can be controlled by the RadiMation® modular EMC Test Software.

For switching RF signals paths, for example in wideband RF immunity test applications where several amplifiers are being used, we provide a range of RF coax switch cards; the RadiSwitch® plug-in cards. Among these plug-in cards we have 2 relays with single pole - dual throw (SPDT),  4 relays (SPDT) and 2 relays single pole - six throw (SP6T).

The frequency range of the internal relays cover an area of DC up to 18 GHz and can be used for power levels up to 150 Watt. For switching High Power we offer an external RF switch box that can be controlled using fiber optic bi-directional (BIDI) link. This ensures that the RadiSwitch® can used for any switching any external relay, for example in 200 V/m radiated immunity test systems.

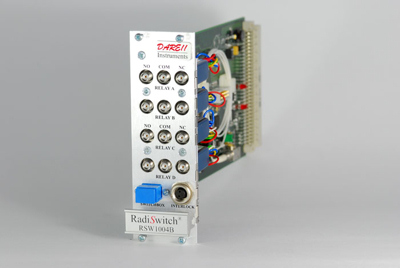

Example of a RadiSwitch® SP6T Plug-in card
